Brake Chambers

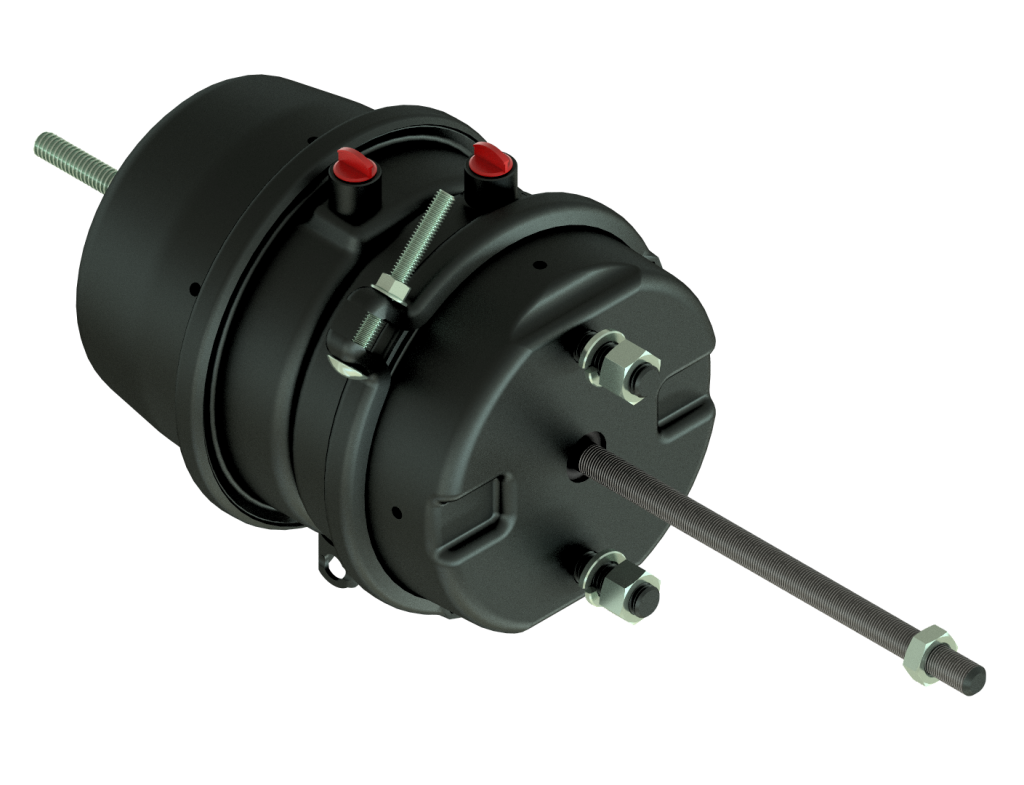

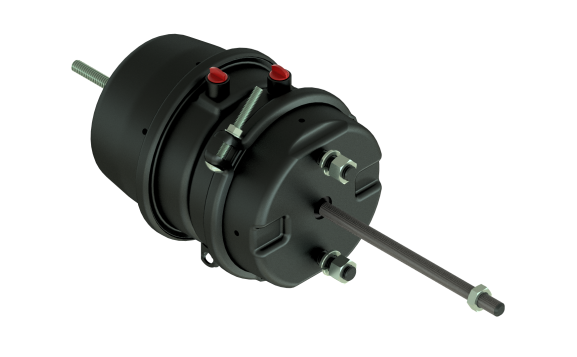

OmniBrake VCT - Variable Clocking Technology Out of the Chamber Thinking: Easy to Install ... Easy to Clock
TSE Brakes now offers a factory sealed diaphragm on a Variable Clocking Technology. This innovative design saves time and money. It also reduces potential for incorrect installations!
The OmniBrake VCT Characteristics
- Patented design
- U.S. Patent No. 9,050,958
- Up to 75% less installation time
- Two part numbers handle most applications:
- 180° clock rotation eliminates need for stocking both left and right hand units
- Less inventory needed
- Less shared leak responsibility
- Diaphragm comes factory sealed
- Easy
- Less training
- Simple instructions
- Quick lock connector saves time and allows for easy, safe clocking while under truck/trailer
- Less chance to install incorrectly
- Patented design eliminates potential failure compared to conventional designs
- No "clamped" air connection to worry about when setting port locations
- Kit comes complete (two pieces vs competitor's eight pieces)
- Less training
- Buyer
- Less tracking for parts shortages
- Competition kits have 8 pieces – TSE VCT has only 4 pieces
- Less labor time to install (Testing results confirm up to 75% less time)
- Less chance to do it wrong (Highest installation failure mode eliminated)
- Smaller box size (Means less space needed for inventory)
- Universal fit means common service base installation
- Less parts to buy and store on shelf
- Better coverage with only 4 part numbers
- Less tracking for parts shortages
- Shop Manager
- Simple work instructions (60% less than competitors)
- Less sealing responsibility (Diaphragm comes factory sealed)
- Quick Lock connector saves time and allows for easy, safe clocking while under truck/trailer.
- Installer
- Less parts to check (Kit comes complete every time (4 pieces vs 8))
- Less air leak points to check and align
- Less time to install
- No "clamped" air connections to worry about when setting port locations
- Road Service Repair
- Less responsibility for correct installation
- Less chance of having the wrong parts on the truck to make repair
- Better coverage with only 4 part numbers
- Less time under the truck/trailer to make repairs (Up to 75% less)
- More likely to create a happy driver (Back on the road quicker)
See our product video
Document Galery
Warranty
4 years
Omni Brake standard
Omni Brake standard
10 years
UltraLife Plus standard
UltraLife Plus standard
Options Table
View Options Table| Option Number | Category | Description | B Dimension | Caged |
|---|---|---|---|---|
| 3030SV2K | VCT - Variable Clocking Technology Piggyback Kits | VCT T-3030 2.5" stroke single Kit + Box | Y | |
| 3030SV3K | VCT - Variable Clocking Technology Piggyback Kits | VCT T-3030 3.0" stroke single Kit + Box | Y | |
| 3030TV2-HNTRX | VCT - Variable Clocking Technology Direct Fit (Clamped + Threaded Rod) | VCT T-3030 2.5" stroke + long rod | 9.75" | Y |
| 3030TV3-HNTRX | VCT - Variable Clocking Technology Direct Fit (Clamped + Threaded Rod) | VCT Â T-3030 3.0" stroke + long rod | 9.75" | Y |
| 3030TVW3-4200 | VCT - Tandem with Welded Clevis for Truck Applications | VCT Â T-3030 3" stroke + welded clevis | 2.25" | Y |
