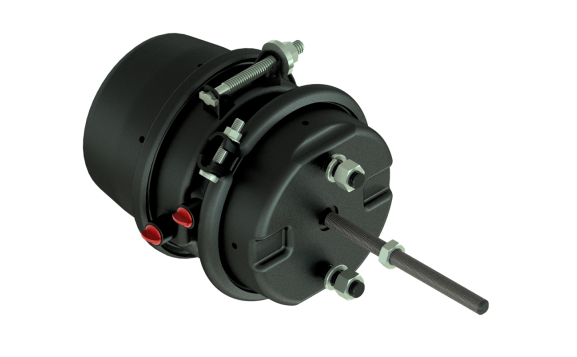

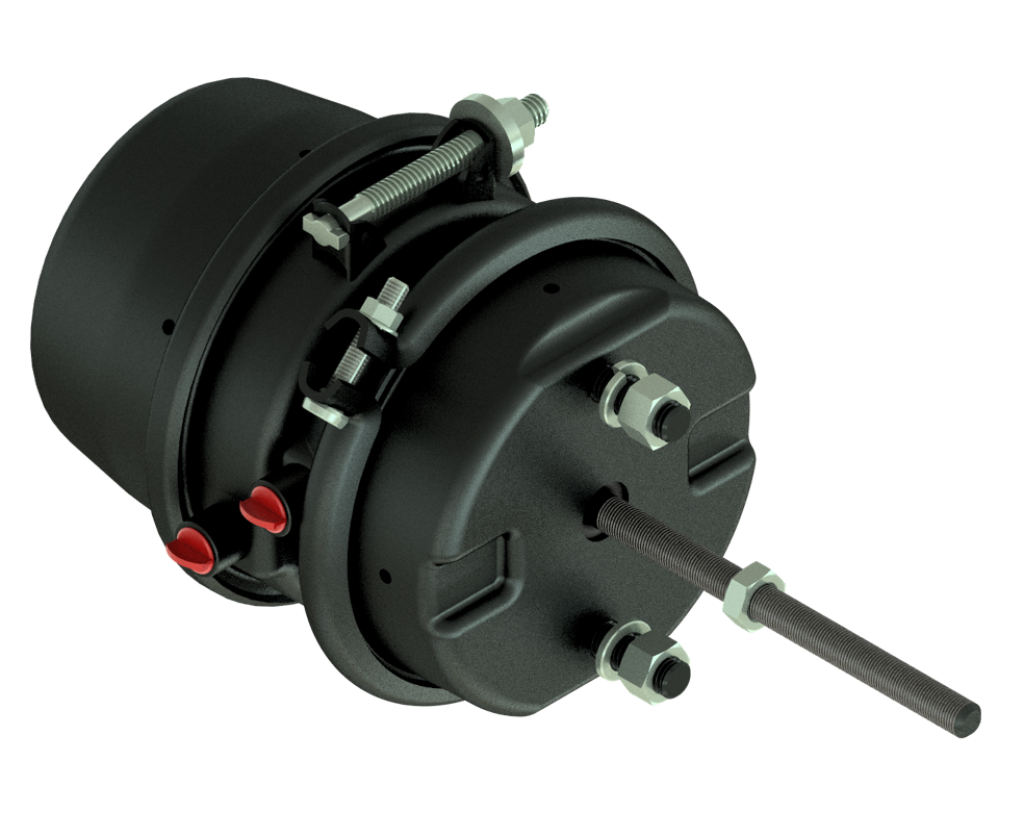

OmniBrake a superior OEM preferred design for your standard brake application
OmniBrake is TSE Brakes’ flagship spring brake actuator, engineered for durability, performance, and versatility across standard S-Cam drum and disc brake applications. Designed to meet the demands of OEM production lines, trusted by fleet operators for long service life, and available to the aftermarket for easy replacement and upgrade—OmniBrake delivers value at every level.
Featuring full pretreatment and e-coating for superior corrosion resistance, a patented self-lubricating bushing assembly for extended seal life, and consistent braking performance in all operating conditions, OmniBrake sets the standard in air brake technology. Whether you're building new, managing a fleet, or replacing components, trust OmniBrake to deliver safety, reliability, and long-term cost savings.
The Omni Brake Characteristics
- Better Design
Featuring TSE's patented design, OmniBrake is completely sealed and tamper-resistant. OmniBrake has an all-steel housing and center section, a center sealed assembly, and a main spring made from chrome silicon pre-tempered wire and specially coated to provide you with premium life and durability characteristics. - Size/Stroke
OmniBrake's all-steel modular design offers more size options for a wide range of applications. Options from 1224 to 3636 sizes, 2.25", 2.5" and 3" stroke options, with long rod, cut rod or fixed position clevis. - Easy to Install
OmniBrake is available with a sealed service side that eliminates clamps for easier fit up, or as clamped service side that provides a convenient replacement chamber for easy-to-install serviceability. - In-House Testing Labs
Many stringent tests are conducted on the OmniBrake to ensure top performance, including high pressure cycle testing, vibration testing, hot cell cycle testing, salt spray testing, cold cell leak/operational testing and slurry testing. - Corrosion Protection
OmniBrakes undergo TSE's in-house full immersion e-coating of housing and internal components, guaranteeing 100% coating and consistent thickness for excellent corrosion protection.
Document Galery
Warranty
5 years
Fleet partners
Fleet partners
4 years
Standard
Standard
2 years
Severe Service
Severe Service
Options Table
View Options Table| Option Number | Category | Description | B Dimension | Caged |
|---|---|---|---|---|
| 3030TN2-HNTRX-C | Direct Fit Units (Clamped + Threaded Rod) | T-3030 2.5" stroke + long rod + clevis | 9.75" | N |
| 3030TN3-2390 | Direct Fit Units (Clamped + Threaded Rod) | T-3030 3.0" stroke + clevis | 5.75" | Y |
| 3030TN3-HNTRX-C | Direct Fit Units (Clamped + Threaded Rod) | T-3030 3.0" stroke + long rod + clevis | 9.75" | N |
| 3030TL2-2401 | Direct Fit Units (Tamper Proof + Pre Cut Threaded Rod) | T-3030 2.5" stroke | 5.75" | Y |
| 3030TL2-2412 | Direct Fit Units (Tamper Proof + Pre Cut Threaded Rod) | T-3030 2.5" stroke + long rod | 9.75" | Y |
| 3030TL3-2517 | Direct Fit Units (Tamper Proof + Pre Cut Threaded Rod) | T-3030 3.0" stroke + long rod | 9.75" | Y |
| 3030TL3-3265 | Direct Fit Units (Tamper Proof + Pre Cut Threaded Rod) | T-3030 3.0" stroke | 5.75" | Y |
| 2024TN2-C | Generic Will-Fit Units | T-2024 2.5" stroke + clevis | 7.75" | N |
| 2424TN2-C | Generic Will-Fit Units | T-2424 2.5" stroke + clevis | 7.75" | N |
| 2430TN2-C | Generic Will-Fit Units | T-2430 2.5" stroke + clevis | 7.85" | N |
| 2430TN3-C | Generic Will-Fit Units | T-2430 3.0" stroke + clevis | 7.25" | N |
| 3030TN2 | Generic Will-Fit Units | T-3030 2.5" stroke | 7.85" | N |
| 3030TN2-C | Generic Will-Fit Units | T-3030 2.5" stroke + clevis | 7.85" | N |
| 3030TN3 | Generic Will-Fit Units | T-3030 3.0" stroke | 7.35" | N |
| 3030TN3-C | Generic Will-Fit Units | T-3030 3.0" stroke + clevis | 7.35" | N |
| 3030TL2-4185 | Intermodal | T-3030 2.5" stroke | 5.75" | Y |
| 3030TL3-4158 | Intermodal | T-3030 3.0" stroke + clevis | 5.75" | Y |
| 3030TN2-C | Intermodal | T-3030 2.5" stroke + clevis | 7.85" | N |
| 3030TN3-C | Intermodal | T-3030 3.0" stroke + clevis | 7.35" | N |
| 12SCN0-C | Service Chambers | T-12 1.75" stroke + clevis | 8.55" | N |
| 16SCN1-C | Service Chambers | T-16 2.25" stroke + clevis | 8.05" | N |
| 20SCN1-C | Service Chambers | T-20 2.25" stroke + clevis | 8.00" | N |
| 20SCN2-C | Service Chambers | T-20 2.5" stroke + clevis | 7.75" | N |
| 24SCN2-C | Service Chambers | T-24 2.5" stroke + clevis | 7.75" | N |
| 24SCN3-C | Service Chambers | T-24 3.0" stroke + clevis | 7.15" | N |
| 30SCN2-C | Service Chambers | T-30 2.5" stroke + clevis | 7.75" | N |
| 30SCN2-HNTRX-C | Service Chambers | T-30 2.5" stroke + long rod + clevis | 9.75" | N |
| 36SCN3-C | Service Chambers | T-36 3.0" stroke + clevis | 7.20" | N |
| 18HSCND2-4026 | Service Chambers for Air Disc Brake | T- 18 Disc 2.5" stroke | Y | |
| 20HSCND2-3630 | Service Chambers for Air Disc Brake | T-20 Disc 2.5" stroke | Y | |
| 22HSCND2-3631 | Service Chambers for Air Disc Brake | T-22 Disc 2.5" stroke | Y | |
| 24HSCND2-3632 | Service Chambers for Air Disc Brake | T-24 Disc 2.5" stroke | Y | |
| 20SCLW2 | Service Chambers with Welded Clevis | T-20 2.5" stroke + welded clevis | 2.25" | N |
| 24SCLW2 | Service Chambers with Welded Clevis | T-24 2.5" stroke + welded clevis | 2.25" | N |
| 24SCLW3 | Service Chambers with Welded Clevis | T-24 3.0" stroke + welded clevis | 2.25" | N |
| 30SCLW3 | Service Chambers with Welded Clevis | T-30 3.0" stroke + welded clevis | 2.25" | N |
